AIM Fire Stop Strip is made from high density Rockwool stonewool and is permanently held in place by compression without the need for adhesive or intumescent mastic. It prevents the passage of flame and smoke through the void being fire stopped.

For gaps greater than 100mm above masonry walls and partitions use AIM Partition Head Barrier

APPLICATIONS

AIM Fire Stop Strips have been developed to prevent the passage of fire and smoke in narrow voids in constructions such as the junctions of compartment walls and floors. The Fire Stop Strip will accept deflection from the floor above and can be used to seal imperfections in the wall construction.

AIM Fire Stop Strips have been tested for use with a variety of wall constructions including timber framed, SFS with CP board facing as well as conventional masonry.

Typical applications include:

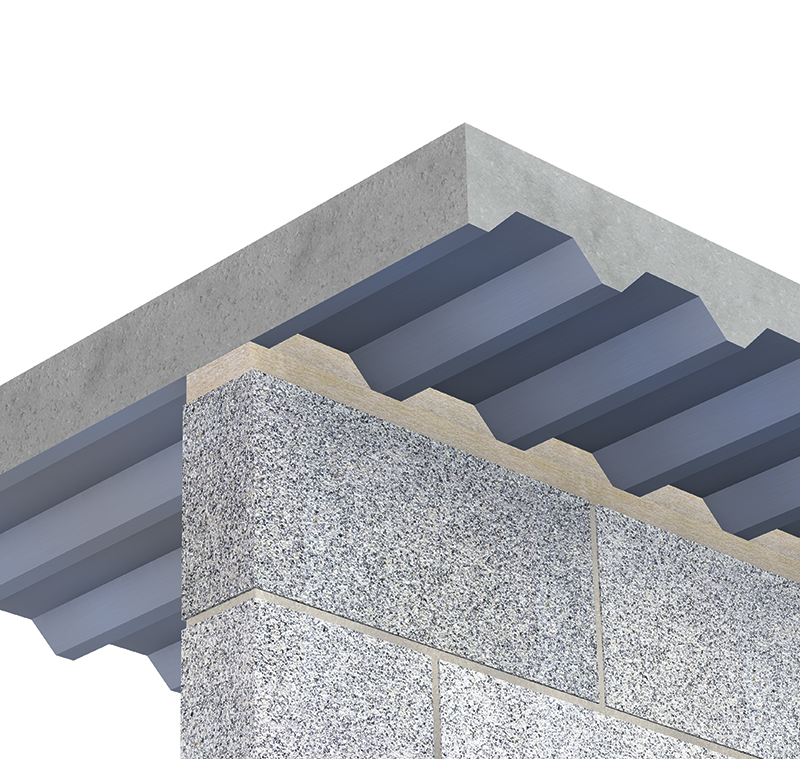

• Top of masonry wall under soffit
• Above partitions
• Movement joint in masonry wall
• Within metal cladding systems
• Between ceilings and walls
• Metal Decking, Roofing and Cladding
